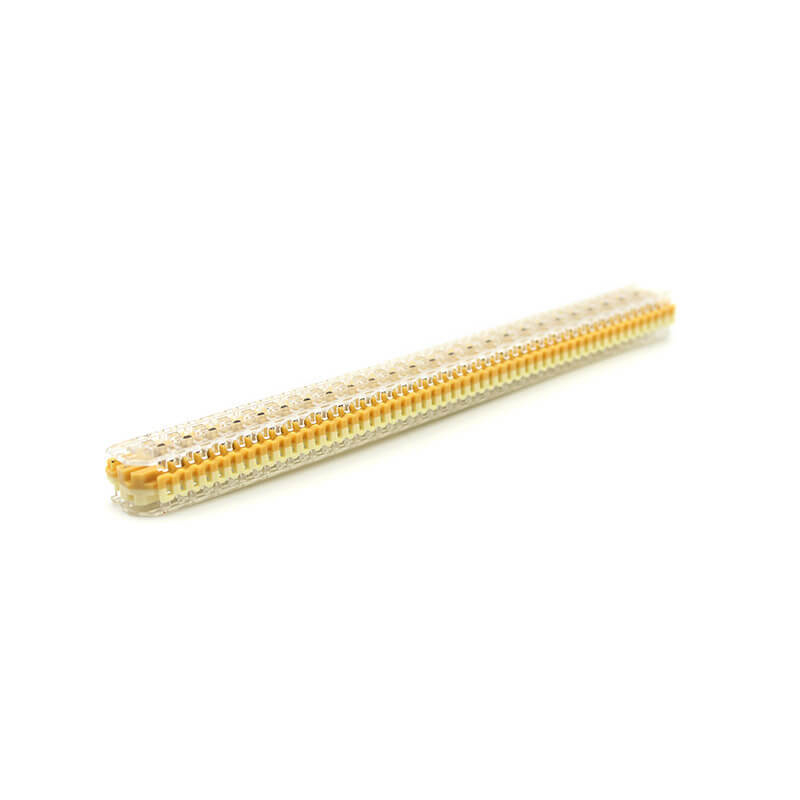

25 Pair Splicing Module 28-22 AWG Without Gel 1.65mm Diameter

25 Pair Splicing Module 28-22 AWG Without Gel 1.65mm Diameter
25 Pair Splicing Module 28-22 AWG Without Gel 1.65mm Diameter
25 Pair Splicing Module 28-22 AWG Without Gel 1.65mm Diameter 25 Pair Splicing Module 28-22 AWG Without Gel 1.65mm Diameter 25 Pair Splicing Module 28-22 AWG Without Gel 1.65mm Diameter 25 Pair Splicing Module 28-22 AWG Without Gel 1.65mm Diameter 25 Pair Splicing Module 28-22 AWG Without Gel 1.65mm Diameter

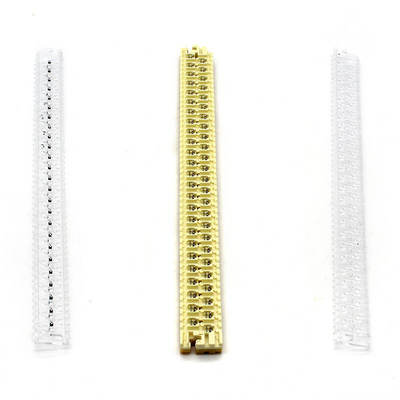

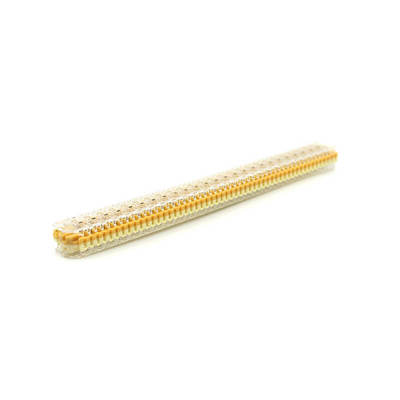

Großes Bild :  25 Pair Splicing Module 28-22 AWG Without Gel 1.65mm Diameter

Produktdetails:
Herkunftsort: CHINA
Markenname: DOWELL
Modellnummer: DW-4000D
Zahlung und Versand AGB:
Min Bestellmenge: 1000
Lieferzeit: 7-15 Tage
Zahlungsbedingungen: T/t
Versorgungsmaterial-Fähigkeit: 5000 Prozent pro Woche
Kontakt

25 Pair Splicing Module 28-22 AWG Without Gel 1.65mm Diameter

Beschreibung
Wohnmaterial: PC (UL 94v-0) ohne Gel Kontaktmaterial: Phosphor-Bronze aus Zinn
Kraft der Einfügung von Draht: 45N typisch Kraft des Drahtziehens: 40N typisch
Maximaler Isolationsdurchmesser: 1,65 Millimeter Kabelstil und Kabeldurchmesser: 0.32-0.65 mm (28-22 AWG)
Hervorheben:

25 pair fiber optic splicing module

,

gel-free fiber optic splice module

,

1.65mm diameter fiber optic connector

28-22 AWG Cable 25 Pair Splicing Module Without Gel
25 Pair Splicing Module Without Gel

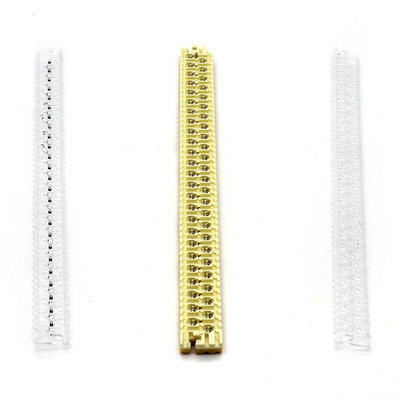

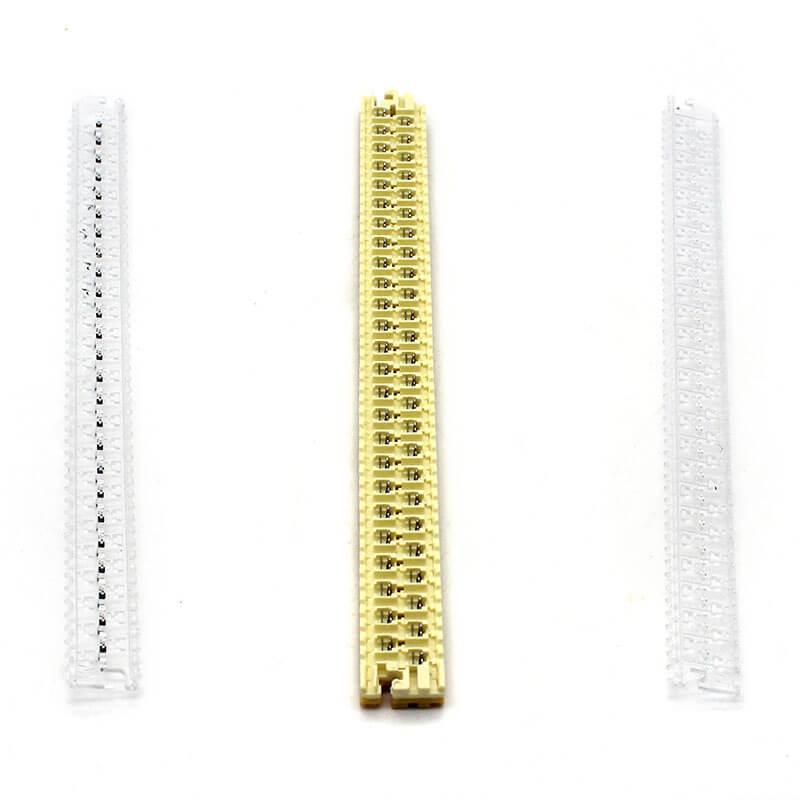

The 25-Pair Splicing Module without Gel is designed for connecting all plastic communication cables (diameter 0.32 - 0.65mm) through direct, bridge, and multiple connections. Widely used in communication circuits, it features a tuning fork type and sheet joint design for reliable connections. The clear cover module allows for easy pair identification and troubleshooting.

Specifications
Housing Material PC (UL 94v-0) without gel Contacts Material Tinned Phosphor Bronze
Wire Insertion Force 45N Typical Wire Pull-Out Force 40N Typical
Max Insulation Diameter 1.65 mm Cable Style and Wire Diameter 0.32-0.65 mm (28-22 AWG)
Storage Temperature -40℃～ 120℃ Operating Temperature -30℃～ 80℃
Relative Humidity <90% (@20℃) Atmospheric Pressure 70 Kpa～106 KPa
Insulation Resistance R≥10000M Ohm Contact Resistance Vary 1m Ohm
Constant Current 5KA 8/20u Sec Surge Current 10KA 8/20u Sec
Key Features
  • Plastic Housing: PC (UL 94v-0)
  • Gel-free design highly resistant to moisture and environmental elements
  • Withstands sudden temperature changes
  • Contacts: Tinned Phosphor Bronze
  • Cutting blades leftover cable: Stainless steel
  • Wire Insertion Force: 45N Typical
  • Wire Pull out Force: 40N Typical
  • Breaking strength or slip conductor: > 75% Wire breaking strength
  • Electrical contact by pressure
  • Safe and durable connection
  • Use Times: >100
