E2000 APC Simplex Fiber Optic Adapter 0.2dB Insertion Loss

Name: E2000 APC Simplex Fiber Optic Adapter 0.2dB Insertion Loss
Brand: DOWELL INDUSTRY GROUP LIMITED
SKU: DW-EAS
Price: 0.45 USD
Availability: InStock

Alle Produkte

Fiberoptische Patch-Schnur
(60)

Faseroptikspleißschließung
(30)

Fiber-Drop-Wire-Clamp
(39)

ADSS-Ankerklemme
(64)

Glasfaserkabel
(28)

PLC-Splitter
(26)

MPO-Pflasterleiter
(5)

Wasserdichtes Faser-Optikverbindungsstück
(65)

Glasfaser-Terminalsteckdose
(22)

Glasfaserverteilfach
(42)

Glasfaserreiniger
(19)

Scotchlok Butt-Anschluss
(36)

Elektroisolierband
(14)

LSA-Modul von KRONE
(25)

Netzwerkkabel-Kremmwerkzeuge
(142)

Bescheinigung

China DOWELL INDUSTRY GROUP LIMITED zertifizierungen

Ich bin online Chat Jetzt

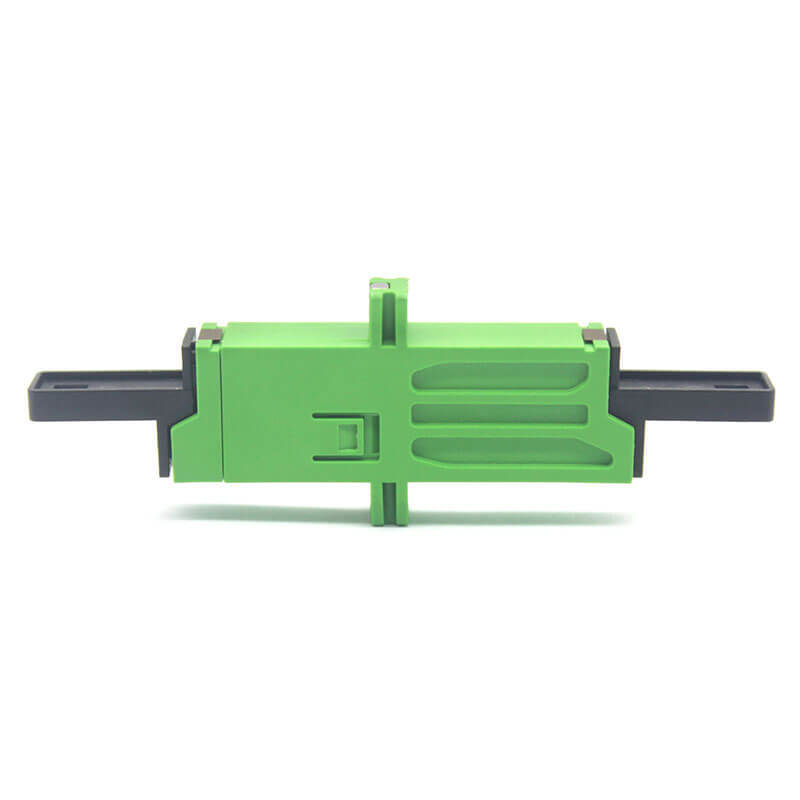

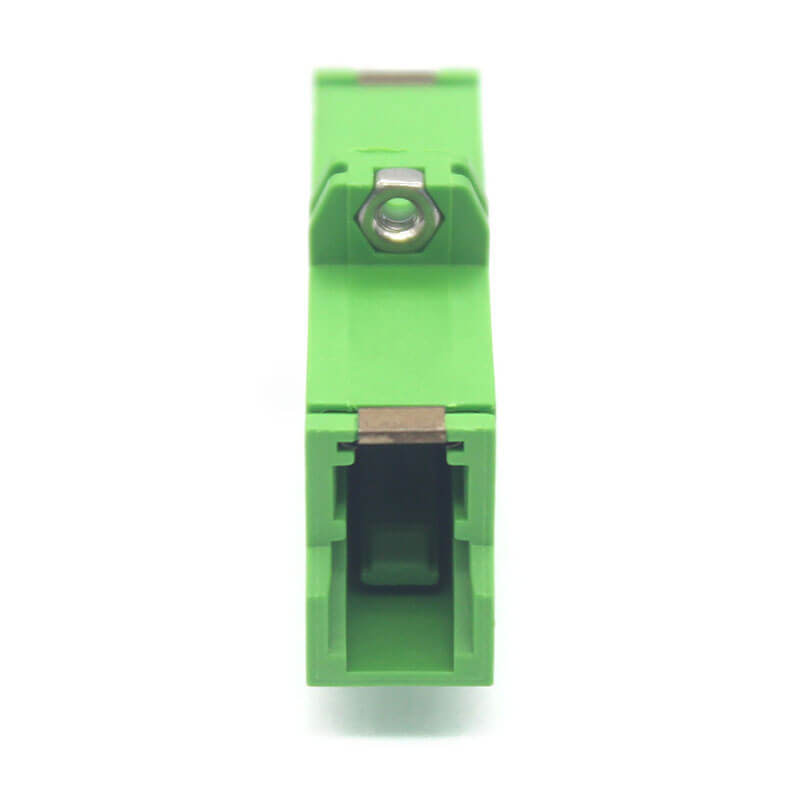

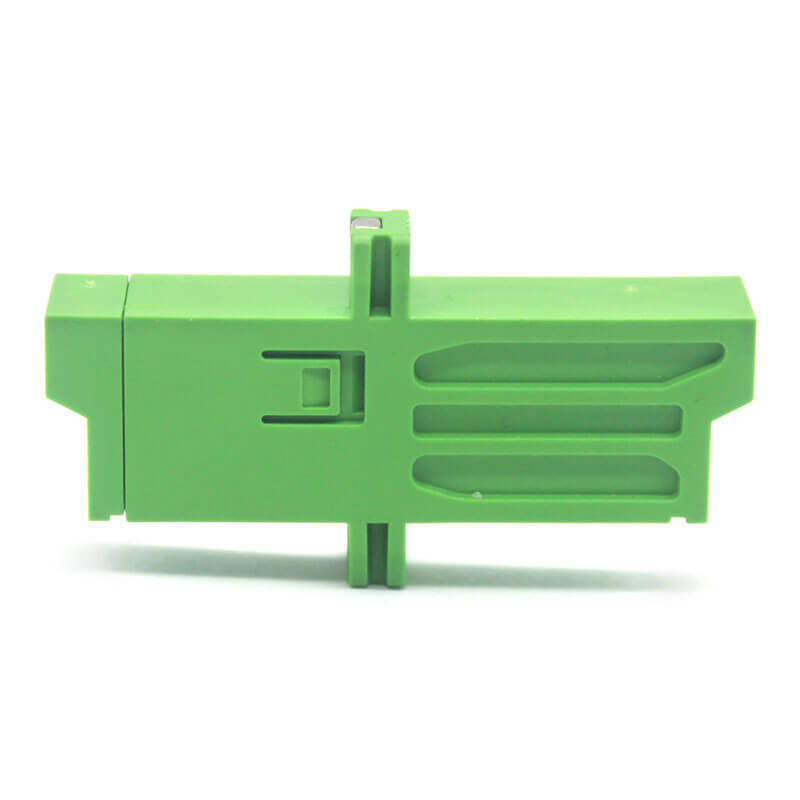

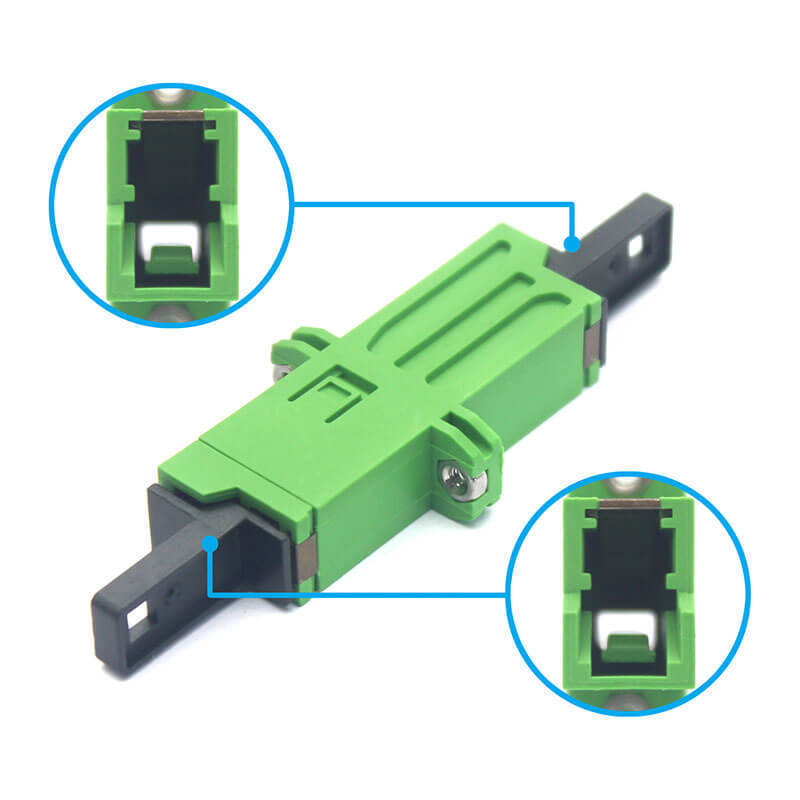

E2000 APC Simplex Fiber Optic Adapter 0.2dB Insertion Loss

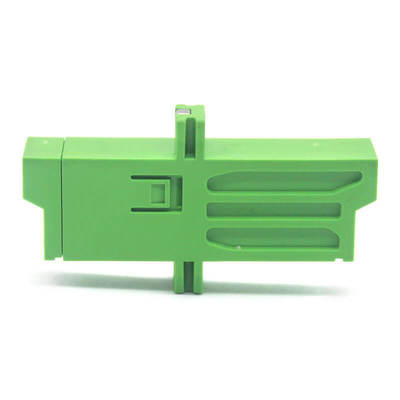

Großes Bild : E2000 APC Simplex Fiber Optic Adapter 0.2dB Insertion Loss

Produktdetails:

Herkunftsort:	China
Markenname:	DOWELL
Modellnummer:	DW-EAS

Zahlung und Versand AGB:

Min Bestellmenge:	1000 Prozent
Lieferzeit:	7-15 Tage
Zahlungsbedingungen:	T/t
Versorgungsmaterial-Fähigkeit:	5000 Prozent pro Woche

Kontakt

E2000 APC Simplex Fiber Optic Adapter 0.2dB Insertion Loss

Beschreibung

Einfügungsverlust:	0.2 dB (Zr. Keramik)	Haltbarkeit:	0.2 dB (500 Zyklen bestanden)
Speichertemperatur.:	- 40°C bis +85°C	Luftfeuchtigkeit:	95% RH (ohne Verpackung)
Laden-Test:	≥ 70 N	Frequenz einfügen und zeichnen:	≥ 500mal
Hervorheben:	APC simplex fiber adapter , E2000 fiber optic connector , low loss fiber adapter

FTTH E2000 APC Simplex Fiber Optic Adapter

E2000 APC Simplex Fiber Optic Adapter

E2000 Connector is designed for latched push-pull connectors with automatic metal shutters in connectors and adapters for protection against dust and laser beams. Features one-piece engineering for easy, fast termination and high security in high-power applications. Available in UPC and APC versions for both single mode and multimode types.

Specifications

Insertion Loss	0.2 dB (Zr. Ceramic)	Durability	0.2 dB (500 Cycle Passed)
Storage Temp.	-40°C to +85°C	Humidity	95% RH (Non Packaging)
Loading Test	≥ 70 N	Insert/Draw Frequency	≥ 500 times

Key Features

Connection: Joins two fiber optic connectors securely
Alignment: Precisely aligns ceramic ferrules to minimize signal loss
Versatility: Compatible with same or different connector types
Panel Mounting: Designed for patch panels, wall outlets, and network equipment

Applications

CATV Systems
Telecommunications
Optical Networks
Testing/Measurement Instruments
Fiber To The Home (FTTH)

These E2000 fiber adapters with zirconia sleeves are ideal for WANs, LANs, CATV, Metrology, Railway, and Industrial applications, providing safe transmission of high bit rate protocols.
