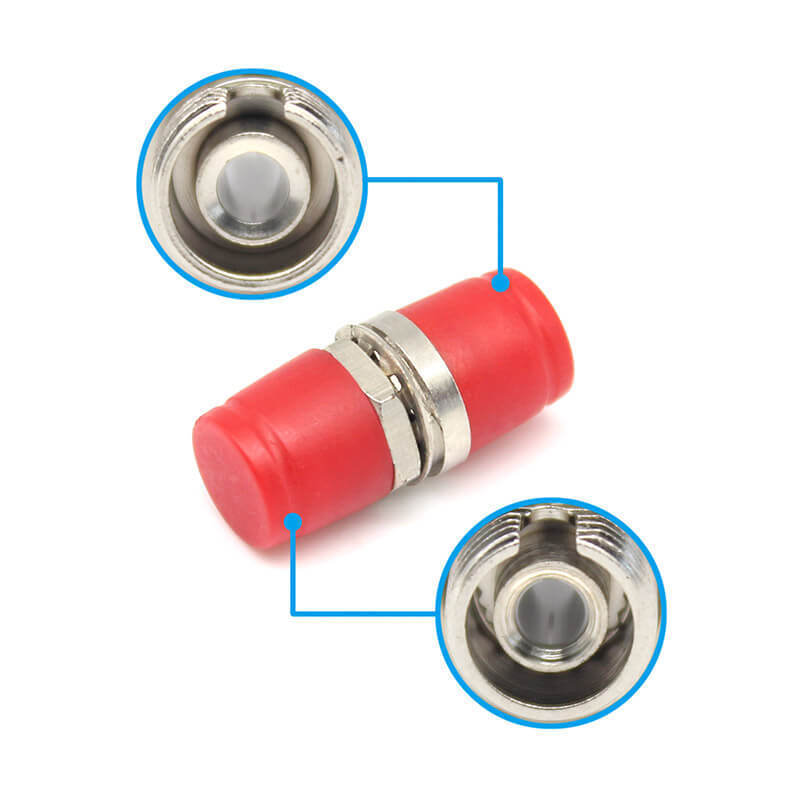

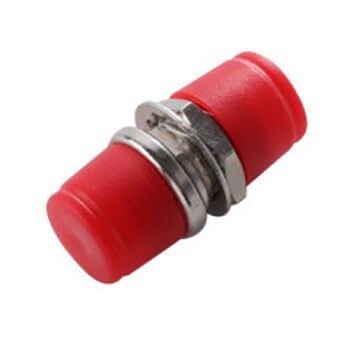

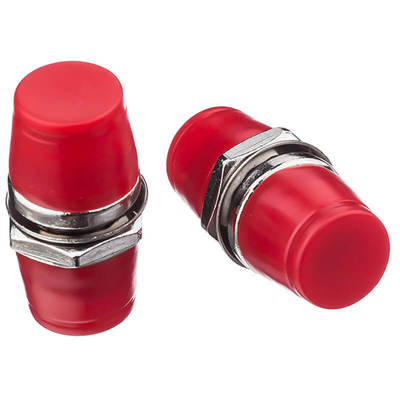

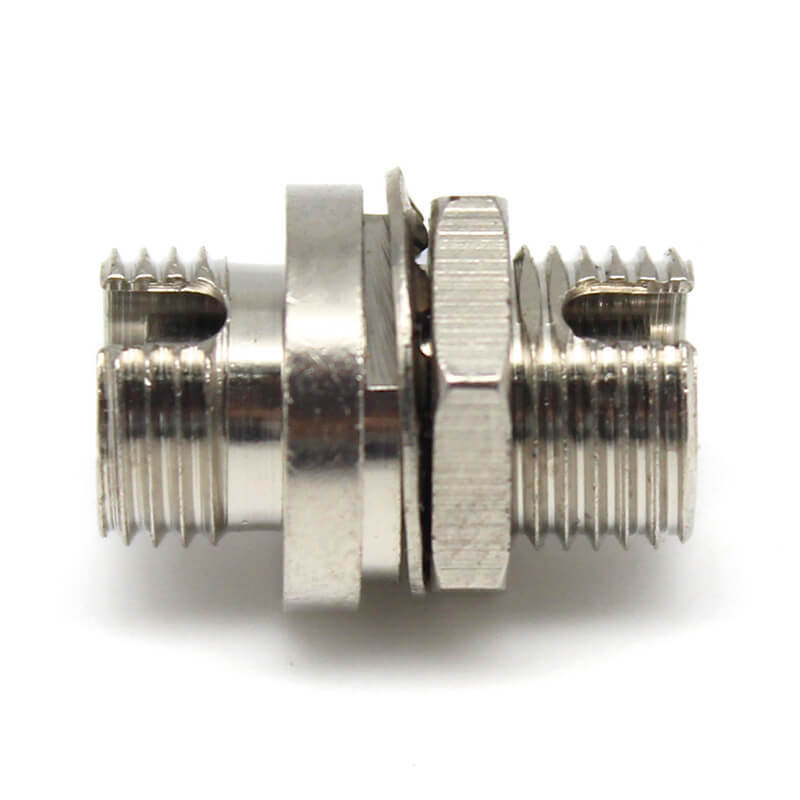

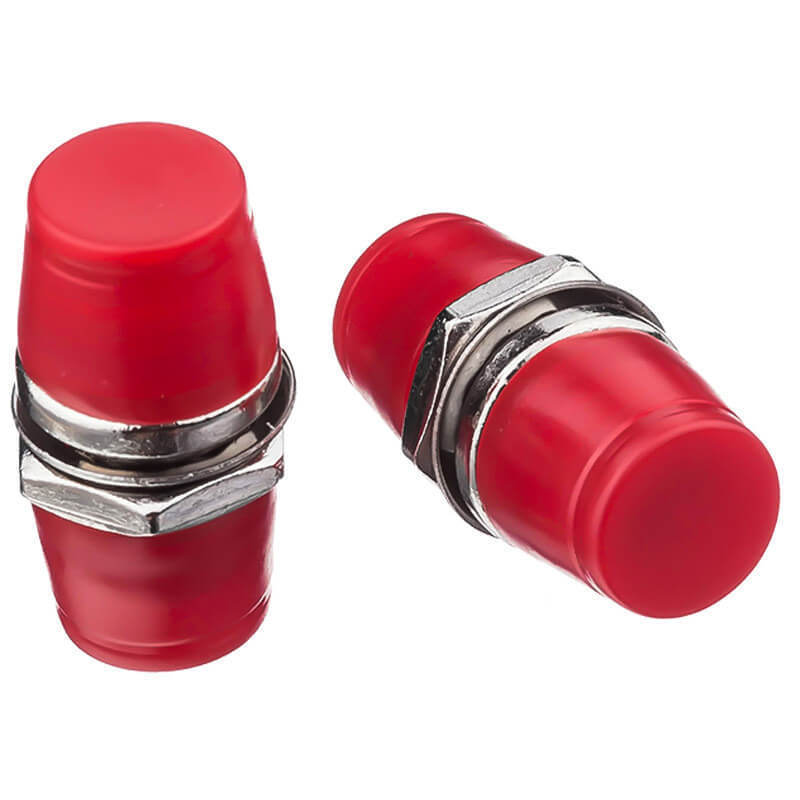

FC UPC D Type Fiber Optic Adapter 0.2dB Loss 500 Cycles

FC UPC D Type Fiber Optic Adapter 0.2dB Loss 500 Cycles
FC UPC D Type Fiber Optic Adapter 0.2dB Loss 500 Cycles FC UPC D Type Fiber Optic Adapter 0.2dB Loss 500 Cycles FC UPC D Type Fiber Optic Adapter 0.2dB Loss 500 Cycles FC UPC D Type Fiber Optic Adapter 0.2dB Loss 500 Cycles

Großes Bild :  FC UPC D Type Fiber Optic Adapter 0.2dB Loss 500 Cycles

Produktdetails:
Herkunftsort: China
Markenname: DOWELL
Modellnummer: DW-fus-d
Zahlung und Versand AGB:
Min Bestellmenge: 1000 Prozent
Lieferzeit: 7-15 Tage
Zahlungsbedingungen: T/t
Versorgungsmaterial-Fähigkeit: 1000 Prozent pro 7 Tage
Kontakt

FC UPC D Type Fiber Optic Adapter 0.2dB Loss 500 Cycles

Beschreibung
Einfügungsverlust: 0.2 dB (Zr. Keramik) Haltbarkeit: 0.2 dB (500 Zyklen bestanden)
Speichertemperatur.: - 40°C bis +85°C Luftfeuchtigkeit: 95% RH (ohne Verpackung)
Laden-Test: ≥ 70 N Frequenz einfügen und zeichnen: ≥ 500mal
Hervorheben:

FC UPC fiber optic adapter

,

D type fiber adapter 0.2dB loss

,

fiber optic adapter 500 cycles

FC UPC D Type Fiber Optic Adapter For Multimode Singlemode Cables
Fiber Optic FC UPC D Type Adapter
Fiber optic adapters (also called couplers) are designed to connect two fiber optic cables together. They come in versions to connect single fibers together (simplex), two fibers together (duplex), or sometimes four fibers together (quad). Adapters are designed for multimode or singlemode cables. The singlemode adapters offer more precise alignment of the tips of the connectors (ferrules). It is ok to use singlemode adapters to connect multimode cables, but you should not use multimode adapters to connect singlemode cables.
Specification
Insertion Lose 0.2 dB (Zr. Ceramic) Durability 0.2 dB (500 Cycle Passed)
Storage Temp. -40°C to +85°C Humidity 95% RH (Non Packaging)
Loading Test ≥ 70 N Insert and Draw Frequency ≥ 500 times
Features
  • Double the capacity, perfect space saving solution
  • Small size, large capacity
  • High return loss, Low insertion loss
  • Push-and-pull structure, convenient for operation
  • Split zirconia (ceramic) ferrule is adopted
  • Usually mounted in a distribution panel or wall box
  • The adapters are color coded allowing easy identification of the adapter type
  • Available with single-core & multi-core patch cords and pigtails
Application
  • CATV System
  • Telecommunications
  • Optical Networks
  • Testing / Measurement Instruments
  • Fiber To the Home
