ST/UPC Simplex Fiber Optic Pigtail with LSZH Jacket and Low Insertion Loss for Reliable Termination

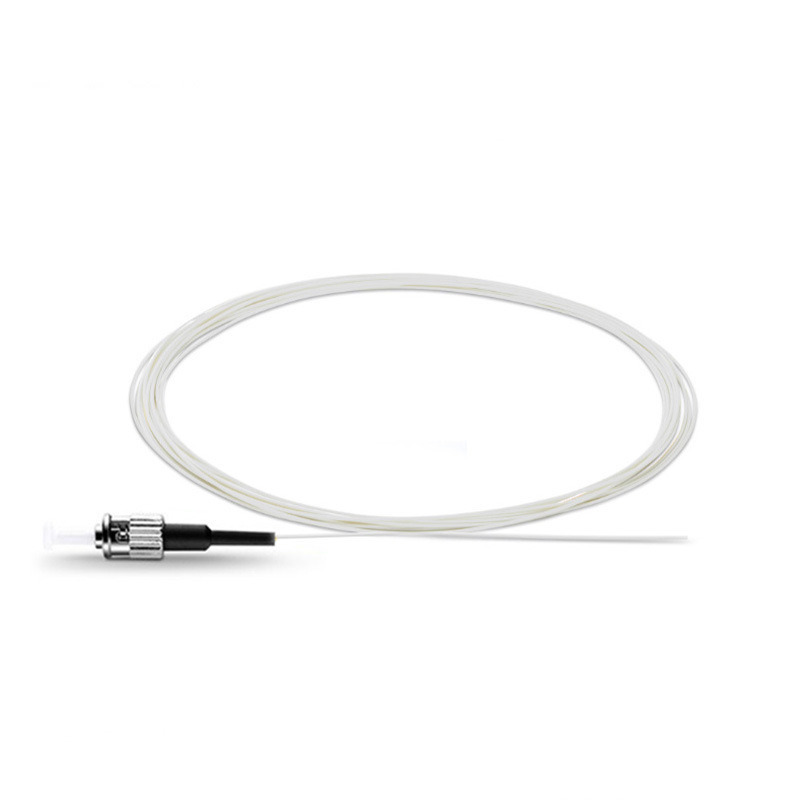

Großes Bild : ST/UPC Simplex Fiber Optic Pigtail with LSZH Jacket and Low Insertion Loss for Reliable Termination

Produktdetails:

Herkunftsort:	CHINA
Markenname:	DOWELL

Zahlung und Versand AGB:

Min Bestellmenge:	1000 Prozent
Lieferzeit:	7-15 Tage
Zahlungsbedingungen:	T/t
Versorgungsmaterial-Fähigkeit:	5000 Stück pro 7 Tage

Kontakt

ST/UPC Simplex Fiber Optic Pigtail with LSZH Jacket and Low Insertion Loss for Reliable Termination

Beschreibung

Einfügungsverlust (DB):

0,25

Renditeverlust (DB):

55/65

Steckverbindertypen:

Stecker

Fasertypen:

Multimode/Singlemode

Hervorheben:

ST/UPC Fiber Optic Pigtail

LSZH Jacket Fiber Optic Patch Cord

Low Insertion Loss Fiber Optic Jumper

1M, 1.5m ST/UPC Simplex Fiber Optic Pigtail LSZH Jacket, 0.9mm

A fiber optic pigtail is a short, single-fiber cable with a factory-installed connector on one end and a bare, exposed fiber on the other. The name "pigtail" comes from this configuration—it looks like a short tail. The primary purpose of a pigtail is to terminate a fiber optic cable, either by splicing or connecting, in a controlled environment to provide a reliable, low-loss connection point.

Specification

CONNECTOR PERFORMANCE
LC, SC, ST and FC connectors	Multimode	Singlemode
	at 850 and 1300 nm	UPC at 1310 and 1550 nm
	APC at 1310 and 1550 nm	Typical
Insertion Loss (dB)	0.25	0.25
Return Loss (dB)	-	55

Structure

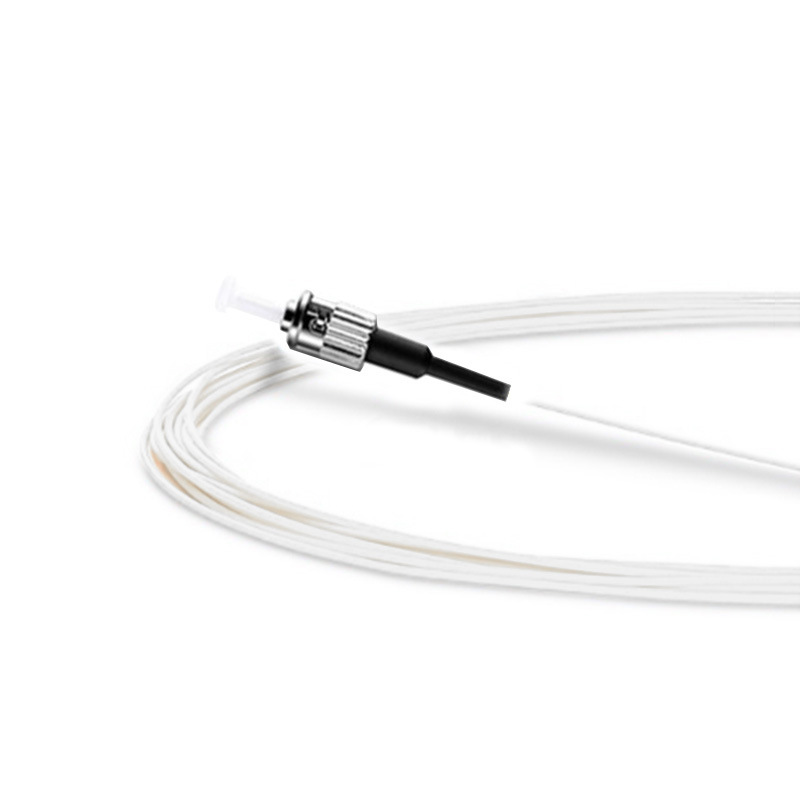

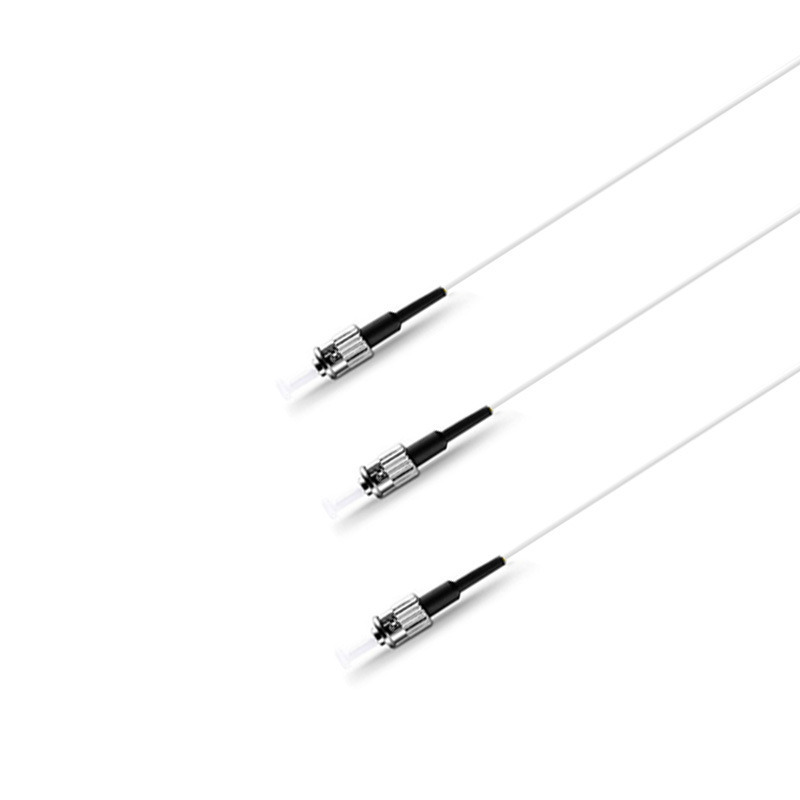

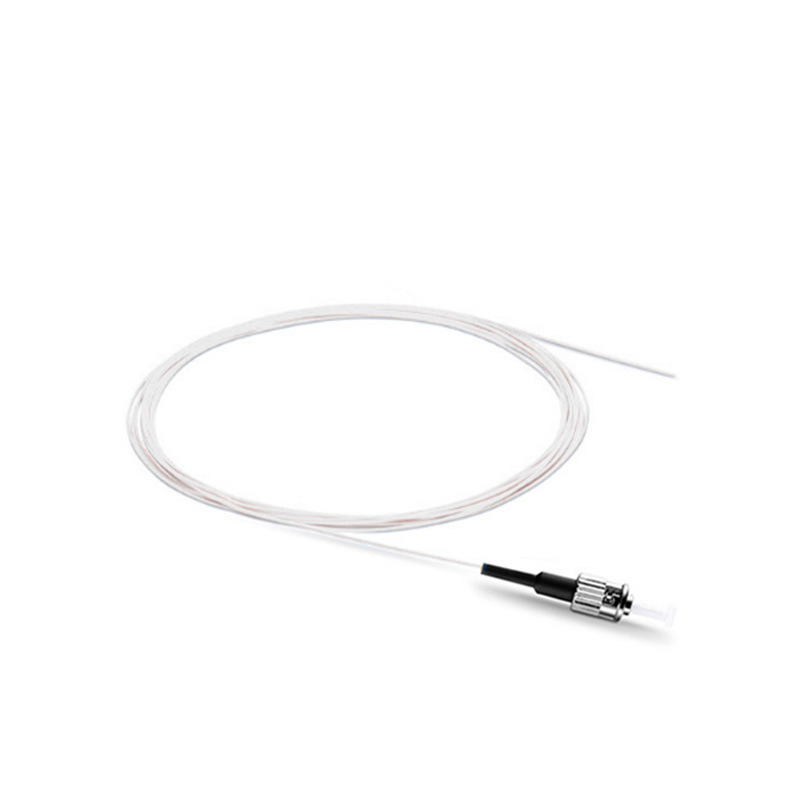

Connectorized End: This end has a standard connector (like SC, LC, FC, ST, or MTP/MPO for multi-fiber) that is polished and precision-made in a factory. This ensures optimal performance.
Bare Fiber End: This is the "working" end. The fiber's buffer coating is stripped away, leaving the bare glass cladding and core exposed. This end is designed for splicing.
Cable Jacket: A short, ruggedized jacket (often 900µm or 2mm/3mm) protects the fiber. It is usually color-coded (orange for multimode, yellow for single-mode).
