24 cores Fiber Optic Splice Closure

2 In 2 Out Dome Fiber Closure

IP68 Fiber Optic Enclosure

Produkt-Beschreibung

Communications 24 cores Dome Fiber Optic Splice Closures 2 In 2 Out

Fiber optic enclosure is a protective housing designed to securely store and organize fiber optic cables, splices, connectors, and passive components. It is a critical part of any fiber optic network infrastructure, serving as the central point for managing, splicing, distributing, and protecting fragile fiber connections. Think of it as the "junction box" or "patch panel" for a fiber optic system.

Specification

Entry ports number	2 In 2 Out
Splice Capacity	24 Cores
Environmental	IP20, UL 94 V-0
IP grade	68
Sealing	Gel-sealed entry ports
Temp Range	-40°C to +70°C

Features

Outer Housing / Shell: The main protective body.
Baseplate / Tray: The internal frame where all components are mounted.
Splice Tray: A modular tray that holds and protects individual fiber splices. Multiple trays can often be stacked.
Adapter Panels / Plates: Hold the fiber optic adapters (e.g., LC, SC, ST) that connect two patch cords.
Fiber Management System: Includes spools, bend-radius limiters, and cable ties to safely route and secure fibers without violating their minimum bend radius.
Cable Ports & Seals: Entry and exit points for cables, with grommets or seals to maintain environmental integrity.
Grounding Lug: A terminal for connecting a grounding wire for electrical safety (especially important for metal enclosures and cables with metal strength members).

Size

Parameter

Working Temperature: -40°C to +65°C

Atmospheric Pressure: 62~106Kpa

Axial Tension: >1000N/1min

Flatten Resistance: 2000N/100 mm (1min)

Insulation resistance: >2*10⁴MΩ

Voltage Strength: 15KV(DC)/1min, no arc over or breakdown

Durability: 25 years

Größe und Tag:

Herkunftsort:	China
Markenname:	DOWELL

Min Bestellmenge:	200pcs
Lieferzeit:	7-15 Tage
Zahlungsbedingungen:	T/T
Versorgungsmaterial-Fähigkeit:	1000 Prozent pro 10 Tage

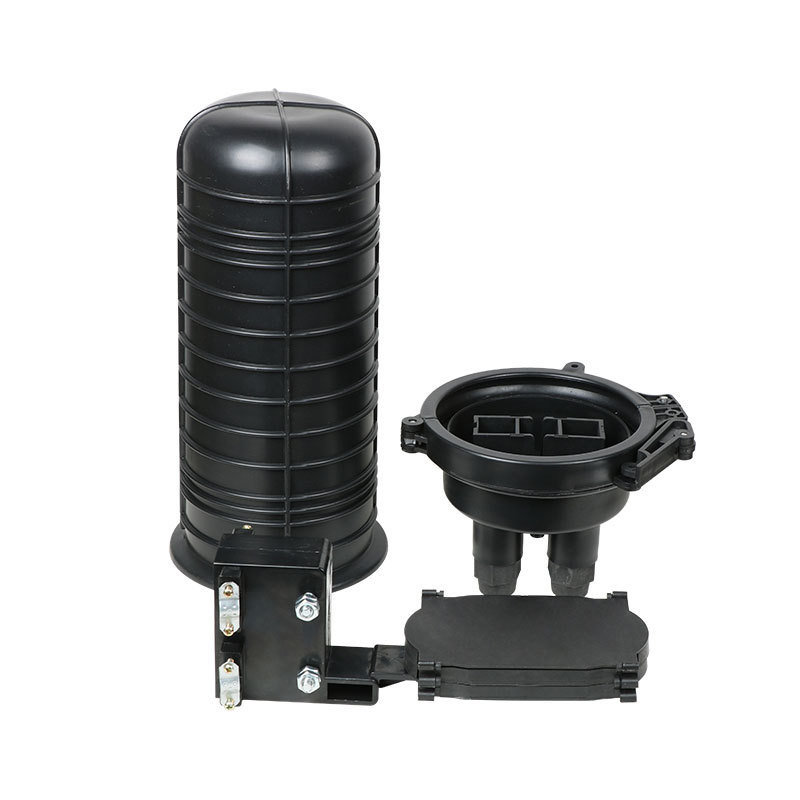

24 cores Dome Fiber Optic Splice Closure with 2 In 2 Out Ports and IP68 Environmental Protection
