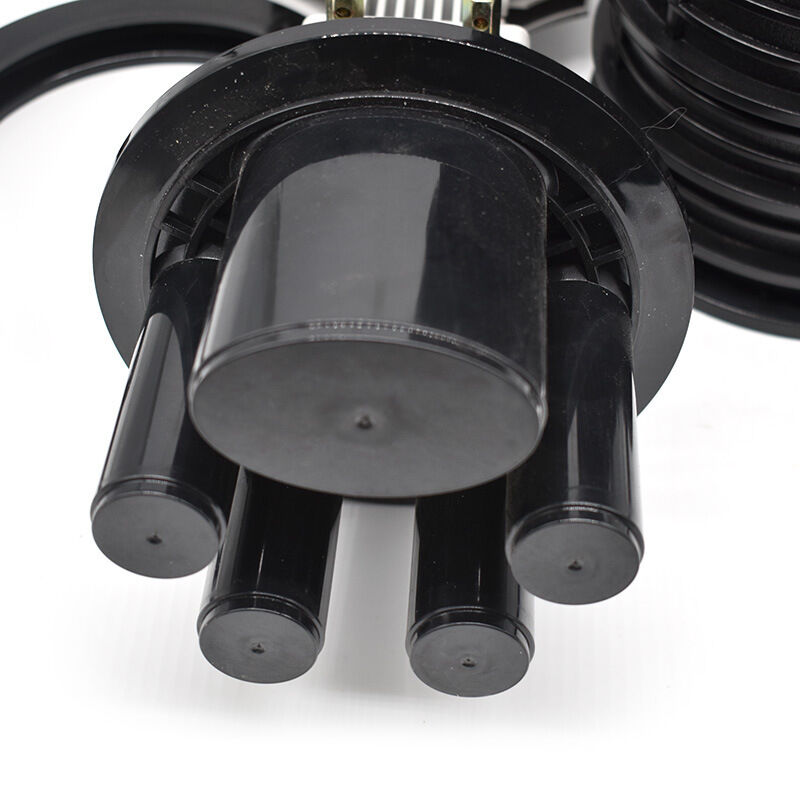

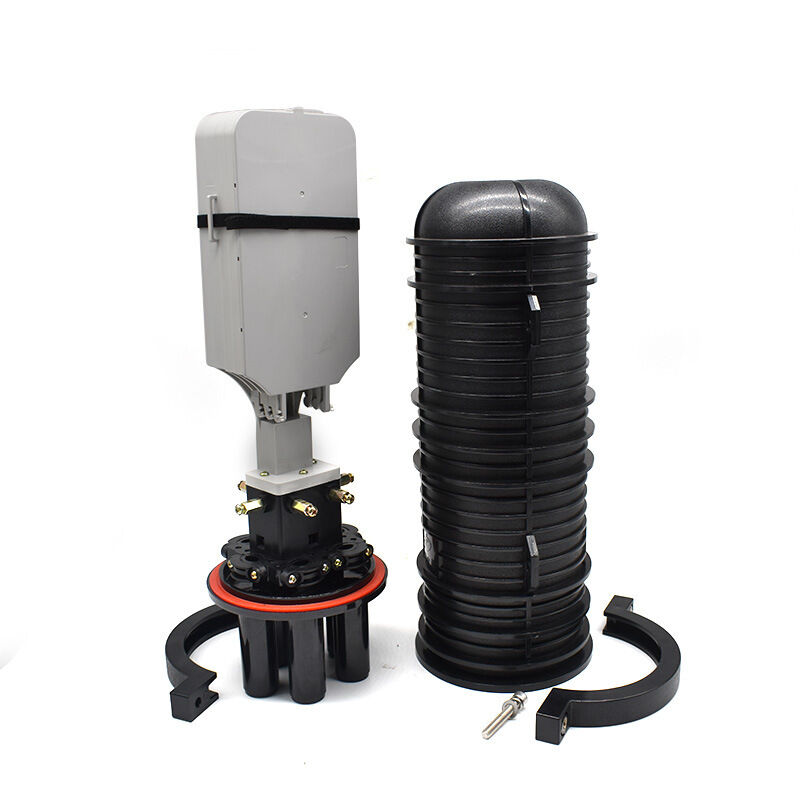

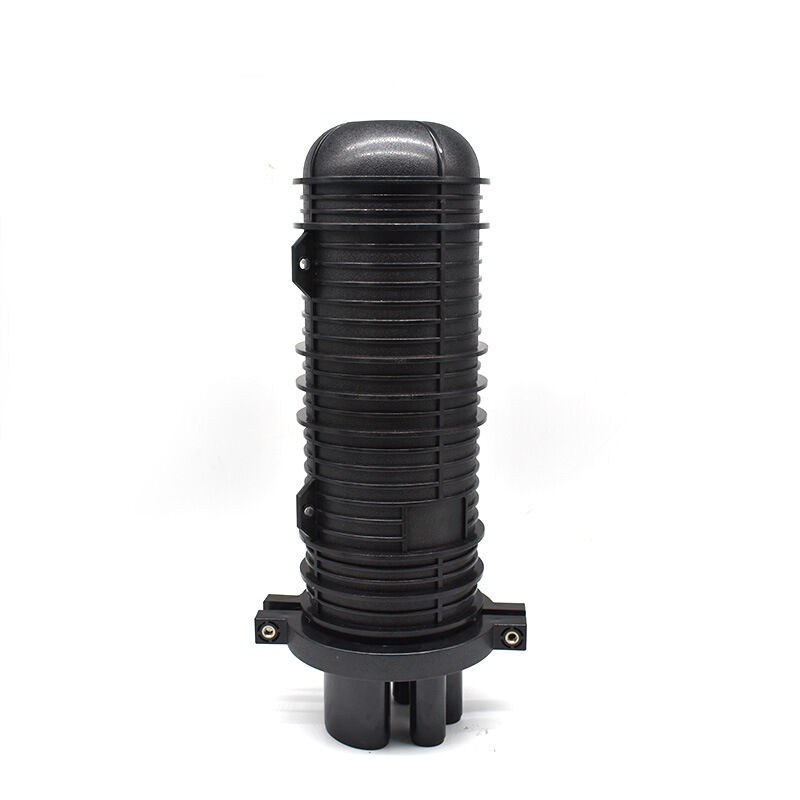

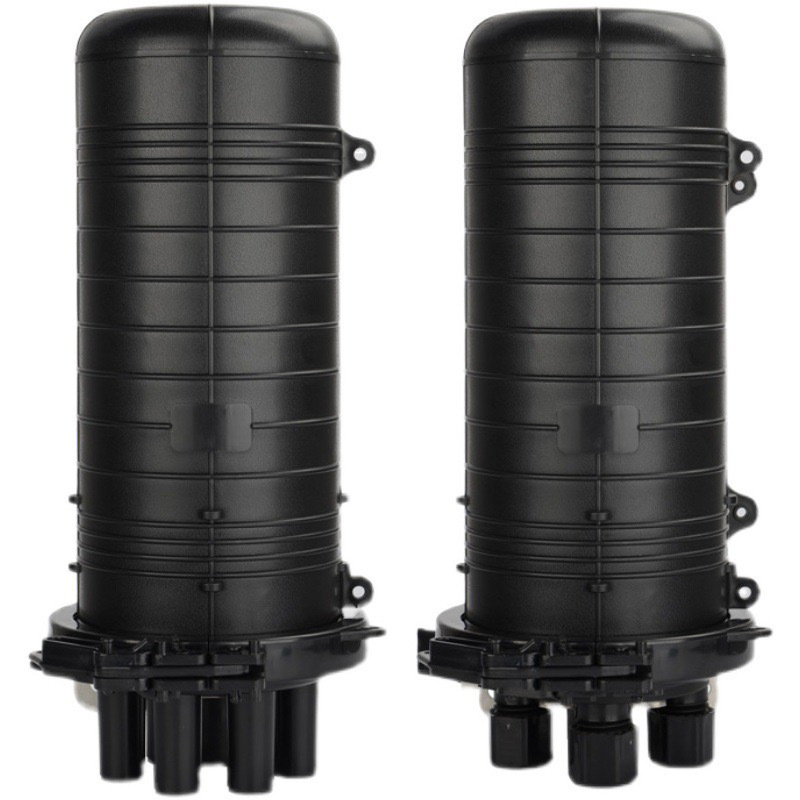

1 In 4 Out Ports Vertical Type Fiber Optic Splice Closure IP67/IP68 Rated for 24/48/72/96 Cores

Großes Bild : 1 In 4 Out Ports Vertical Type Fiber Optic Splice Closure IP67/IP68 Rated for 24/48/72/96 Cores

Produktdetails:

Herkunftsort:	China
Markenname:	DOWELL

Zahlung und Versand AGB:

Min Bestellmenge:	100 Stück
Lieferzeit:	7-15 Tage
Zahlungsbedingungen:	T/T
Versorgungsmaterial-Fähigkeit:	1000 Prozent pro 7 Tage

Kontakt

1 In 4 Out Ports Vertical Type Fiber Optic Splice Closure IP67/IP68 Rated for 24/48/72/96 Cores

Beschreibung

Umweltbewertung:

IP67/IP68

Faserkapazität:

24, 48, 96 Fasern

Material:

Installationstyp:

Antenne (auf Masten montiert), unterirdisch (Kanal/Erdverlegung)

Hervorheben:

1 In 4 Out Ports Fiber Optic Splice Closure

IP67/IP68 Rated FOSC

24/48/72/96 Cores Dome Type Fiber Optic Splice Closure

1 In 4 Out Ports Vertical Type Fiber Optic Splice Closure 24/48/72/96 Cores

Fiber optic splice closure (FOSC) is a fiber management product designed to enclose and protect the joint between two different fiber optic cables. Suitable for both outdoor and indoor installations, this vertical type closure features a robust shell with excellent water and corrosion resistance, ensuring uninterrupted fiber performance and stable light signal transmission.

Specifications

Material	PC/PP/ABS
Cable Port	5
Max Number of Trays	4
Capacity of Single Tray	24 Fibers
Total Capacity	96 Fibers

Key Features

Superior internal structure design for optimal performance
Minimum 30mm fiber bending radius throughout routing
Constructed from non-corrosive materials for durability
Mechanical seal provides protection against harsh environments with easy assembly
Heat shrinkable cable sealing for secure connections
Dust proof and water proof construction
90-degree rotatable splice trays with ample fiber storage space
Easy operation and capacity expansion without disturbing spliced fibers
Compatible with both bunchy cable and ribbon cable types
Suitable for aerial, underground, and duct mounting applications

Applications

Splice Protection: Shields fiber splices from physical impact, water ingress, corrosion, and harsh weather conditions
Cable Management: Organizes fiber slack, pigtails, and splice trays for neat routing and maintenance
Signal Integrity: Prevents signal loss caused by environmental interference or mechanical stress
Expandability: Accommodates additional fibers or splices as network capacity grows
Versatility: Adapts to various installation environments including underground, aerial, and indoor applications
