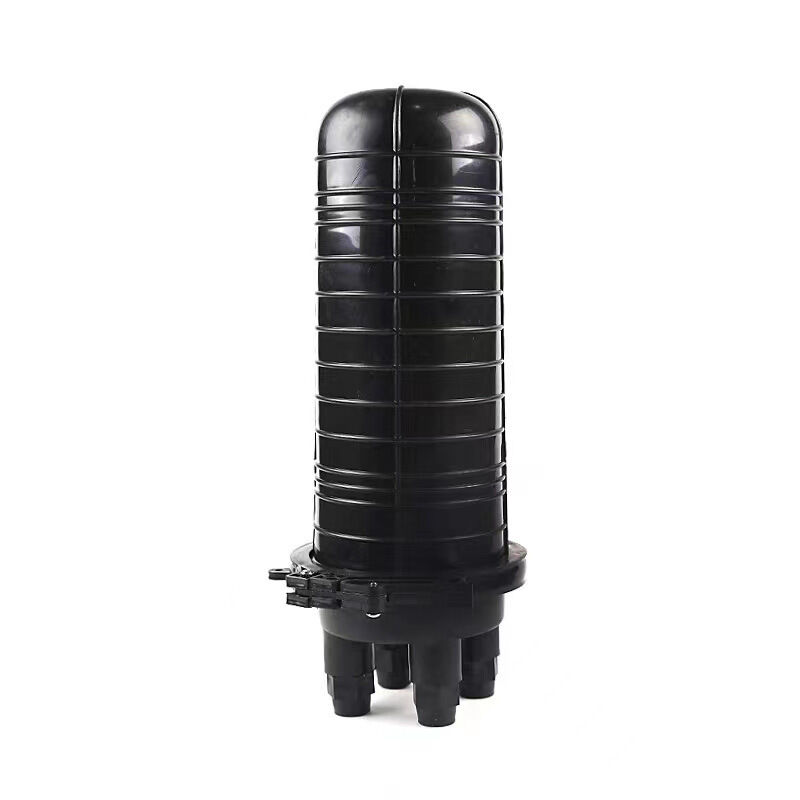

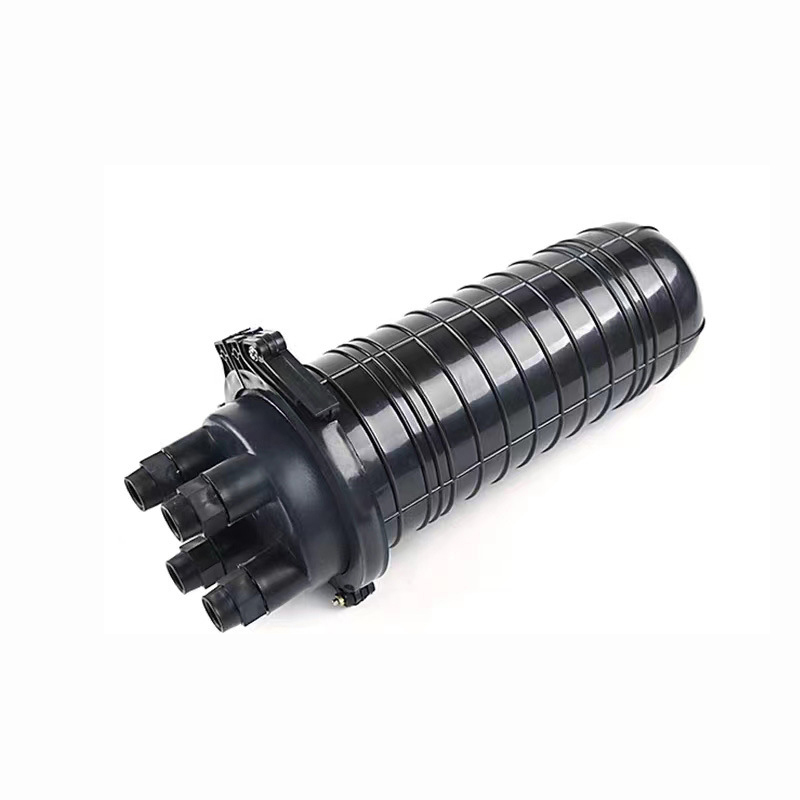

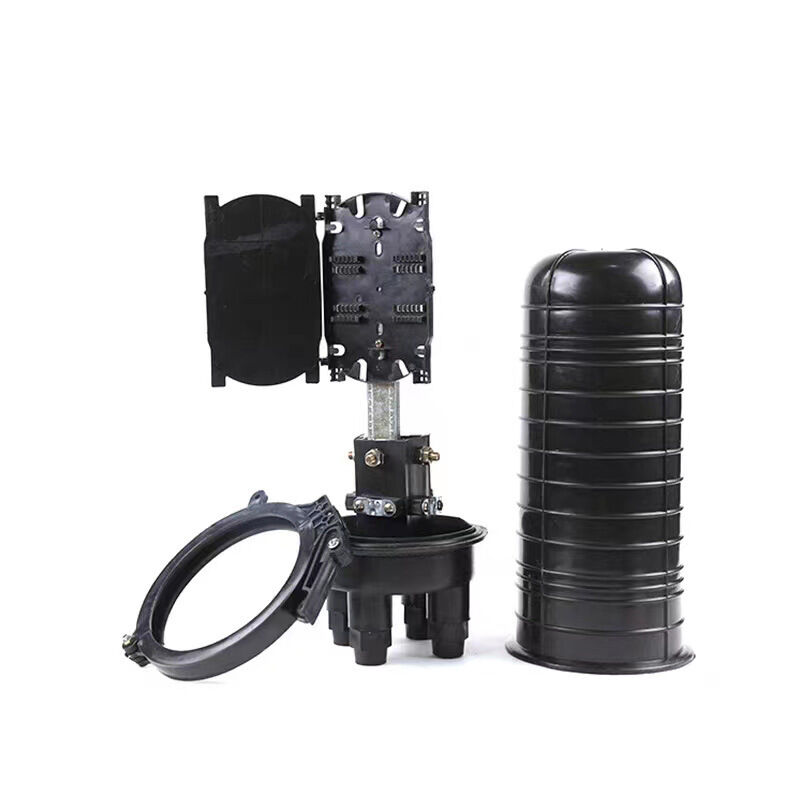

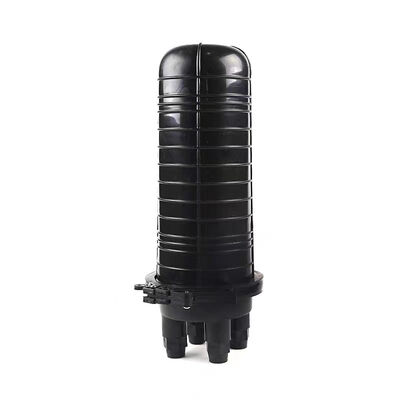

24 Cores Waterproof IP65 Fiber Optic Splice Closure with 2 In 2 Out Ports Dome Type

Name: 24 Cores Waterproof IP65 Fiber Optic Splice Closure with 2 In 2 Out Ports Dome Type
Brand: DOWELL INDUSTRY GROUP LIMITED
Price: 0.45 USD
Availability: InStock

Alle Produkte

Fiberoptische Patch-Schnur
(69)

Faseroptikspleißschließung
(47)

Fiber-Drop-Wire-Clamp
(39)

ADSS-Ankerklemme
(64)

Glasfaserkabel
(27)

PLC-Splitter
(26)

MPO-Pflasterleiter
(5)

Wasserdichtes Faser-Optikverbindungsstück
(66)

Glasfaser-Terminalsteckdose
(23)

Glasfaserverteilfach
(42)

Glasfaserreiniger
(19)

Kabel-Stoßverbinder
(36)

Elektroisolierband
(14)

LSA-Modul von KRONE
(25)

Netzwerkkabel-Kremmwerkzeuge
(142)

Bescheinigung

China DOWELL INDUSTRY GROUP LIMITED zertifizierungen

Ich bin online Chat Jetzt

24 Cores Waterproof IP65 Fiber Optic Splice Closure with 2 In 2 Out Ports Dome Type

Großes Bild : 24 Cores Waterproof IP65 Fiber Optic Splice Closure with 2 In 2 Out Ports Dome Type

Produktdetails:

Herkunftsort:	China
Markenname:	DOWELL

Zahlung und Versand AGB:

Min Bestellmenge:	200 Stück
Lieferzeit:	7-15 Tage
Zahlungsbedingungen:	T/T
Versorgungsmaterial-Fähigkeit:	1000 Prozent pro 10 Tage

Kontakt

24 Cores Waterproof IP65 Fiber Optic Splice Closure with 2 In 2 Out Ports Dome Type

Beschreibung

Material:	PP/ABS/PC	Kapazität:	24 Kerne
Häfen:	4 Stück	Wasserdicht:	IP65
Typ:	Antenne / Mast / Wand / Untergrund	Anwendung:	FTTH
Hervorheben:	24 Cores Fiber Optic Splice Closure , Waterproof IP65 Dome Type Fiber Closure , 2 In 2 Out Ports Fiber Optic Enclosure

24 Cores Waterproof Fiber Optic Splice Closure 2 In 2 Out Dome Type

A fiber optic splice enclosure is a protective housing used to organize, protect, and manage spliced fibers in telecommunications and cable TV networks. It provides a secure environment for fiber splices (both fusion and mechanical) and excess fiber storage (slack loops) at points where cables are joined, branched, or terminated.

Specifications

Type	Typical Installation	Description & Use Case
Aerial / Pole-Mount	Mounted on utility poles or strand	Sealed, dome-shaped or cylindrical closures. Common in outside plant (OSP) networks between poles.
Underground	Placed in handholes, manholes, or direct-buried	Rugged, watertight, often cylindrical "butt-style" closures for in-line splicing, or larger rectangular ones.
Indoor / Wall-Mount	Mounted on walls in buildings, data centers, or telecom rooms	Usually simpler, lighter boxes (often plastic) for patch panels or LAN backbone splices.

Key Features

Physical Protection: Shields delicate splices from moisture, dust, chemicals, and mechanical damage (crush, impact, vibration)
Environmental Sealing: Prevents water ingress, which can degrade fiber performance
Fiber Management: Organizes splice trays and slack fiber to maintain minimum bend radius and prevent micro-bends that cause signal loss
Access Point: Allows for future re-entry for maintenance, testing, or adding new splices

Installation Guidelines

Preparation: Select the right enclosure type for the environment (aerial, buried, etc.). Ensure it has adequate port capacity and splice tray capacity.
Cable Preparation: Strip cables to proper lengths, clean fibers, and secure strength members to the enclosure's strain relief points.
Routing & Bend Radius: Critical for performance. Fibers must always be routed with a bend radius larger than the minimum specified (typically 30mm for OSP fiber, 15mm for patch cords).
Sealing: Follow manufacturer's instructions meticulously for sealing cable ports and main shell. Poor sealing is the most common cause of enclosure failure.
Documentation: Update records with enclosure ID, splice map, fiber identifiers, and test results (insertion loss/IL, return loss/ORL).

Application Example

A 144-fiber feeder cable runs aerially from the central office
At a neighborhood pole, an Aerial Branching Closure is installed. Inside, 48 fibers are spliced to 2x 24-fiber distribution cables that run underground
Each underground cable runs to a Buried Pedestal Closure at a street corner
Inside the pedestal closure, fibers are branched again via splice trays into 6-fiber drop cables running to nearby homes
At the home, a final Small Drop Closure or terminal protects the splice to the pre-terminated indoor cable
